Laser/Water Jet

West End Tool & Die clients come to us for a unique solution to their project, whether it be industrial, manufacturing, medical, food processing or tool and die.  Our cutting systems can handle a wide range of materials–from metal, aluminum, copper, brass, plastic, ceramics, wood and more!

4k Fiber Tube Laser

  • Processable round tube ∅ max. 152.4 mm (6”)
  • Processable square tube max. 152.4 x 152.4 mm (6” x 6”)
  • Bar weight up to 23 kg/m (15.5 lb/ft)
  • Fiber laser source 3kW
  • 3D cutting

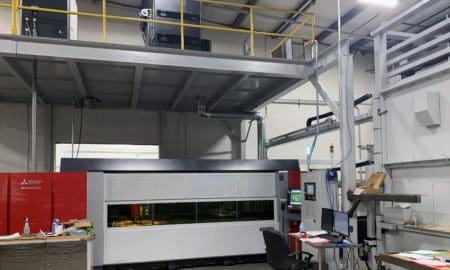

ADVANCED 800 SERIES EX-F FIBER LASER

  • Pierce detection is standard, which allows for the machine to change material thicknesses without sacrificing cut quality and process times
  •  Significantly increased cutting speed
  • Improved process time on small geometry intensive parts due to better acceleration and deceleration.
  • Processing speed up to 100m per min

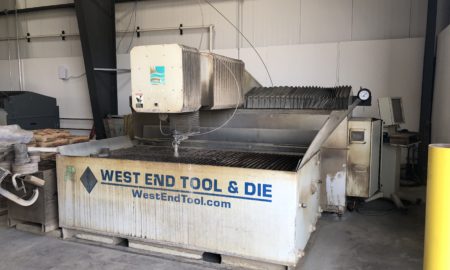

2-Axis Waterjet

  • Flow International waterjet machines
  • 6′ x 12′ operating envelope
  • Tolerance ± 0.003
  • Kerf width .003 min. waterjet
  • .030 abrasive waterjet
  • Ability to cut through 6” thick steel

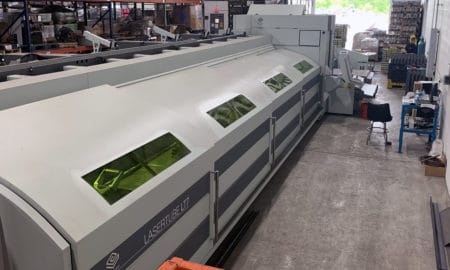

BLM / LT8 (Tube laser)



  • 8” Round .25 wall / 8 x 8 Square .25 wall

Omax / 80X



  • Table size 13Ft x 6Ft

Programming

At West End Tool & Die we use Auto CAD. However we have the ability to use different programming languages. We can interpret drawings or artwork for waterjet cutting whether it is a PC based CAD file or a hand drawn sketch! Mac programs are acceptable as well, just contact us with any questions!

Edge Quality

Pricing is in relation to the feed rate or speed at which the material is waterjet cut. Please contact us if you have any questions about the feed rate needed for your project.
