Precision Stamping

West End Tool & Die offers the following capabilities in Precision Stamping:

  • Small- to high-volume precision stampings in a full range of metals
  • Wide range of press sizes (30 to 200 tons, speeds up to 1500 spm)
  • In house tooling design and build
  • Complete engineering and prototyping
  • Latest CAD technology

West End also offers full range service of finishing, assembly, packaging and materials procurement. We offer:

  • Heat treating
  • Vibratory finishing
  • Plating, powder coating, anodizing, e-coating
  • Tapping
  • Custom product packaging

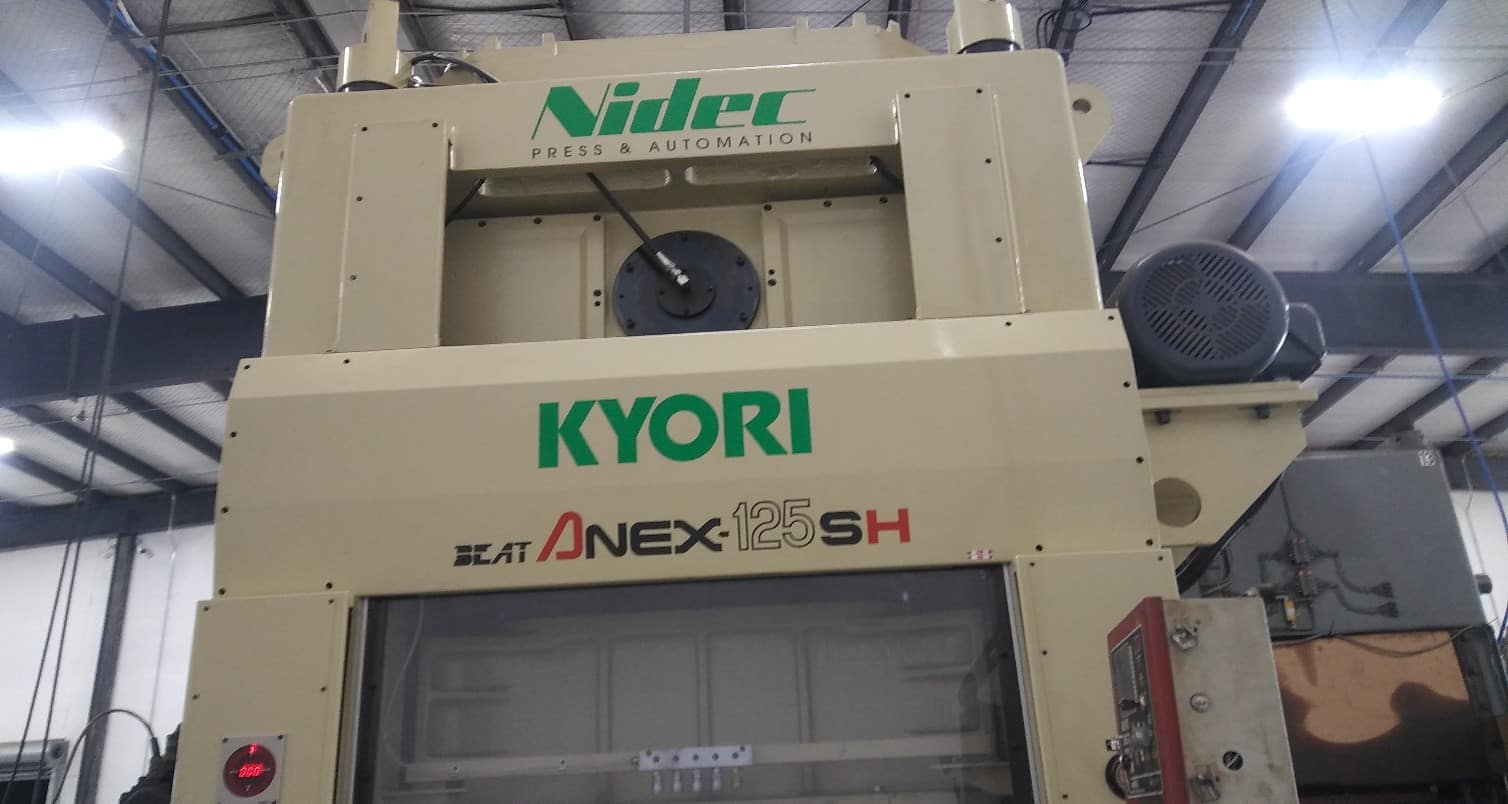

Kyori Anex-125SH High Speed

  • 137 U.S. Tons Capacity (1250 kN)
  • 1.18 in. Stroke (30mm)
  • 3.15 in. Slide Adjustment (80 mm)
  • 16.90 in. / 18.11 in. Shut height, (430 mm / 460 mm)
  • 42.50 x 23.60 in. Slide Area (1080 x 600 mm)
  • 47.25 x 35.40 in. Bed Area (1200 x 900 mm)
  • 41.33 x 13.70 in. Bed Opening (1050 x 350 mm)
  • 38.60 in. x 10.24 in. Bolster Opening (980 x 260 mm)
  • 20.00 in. Upright Opening (510 mm)
  • 100 – 400 SPM Speed Range

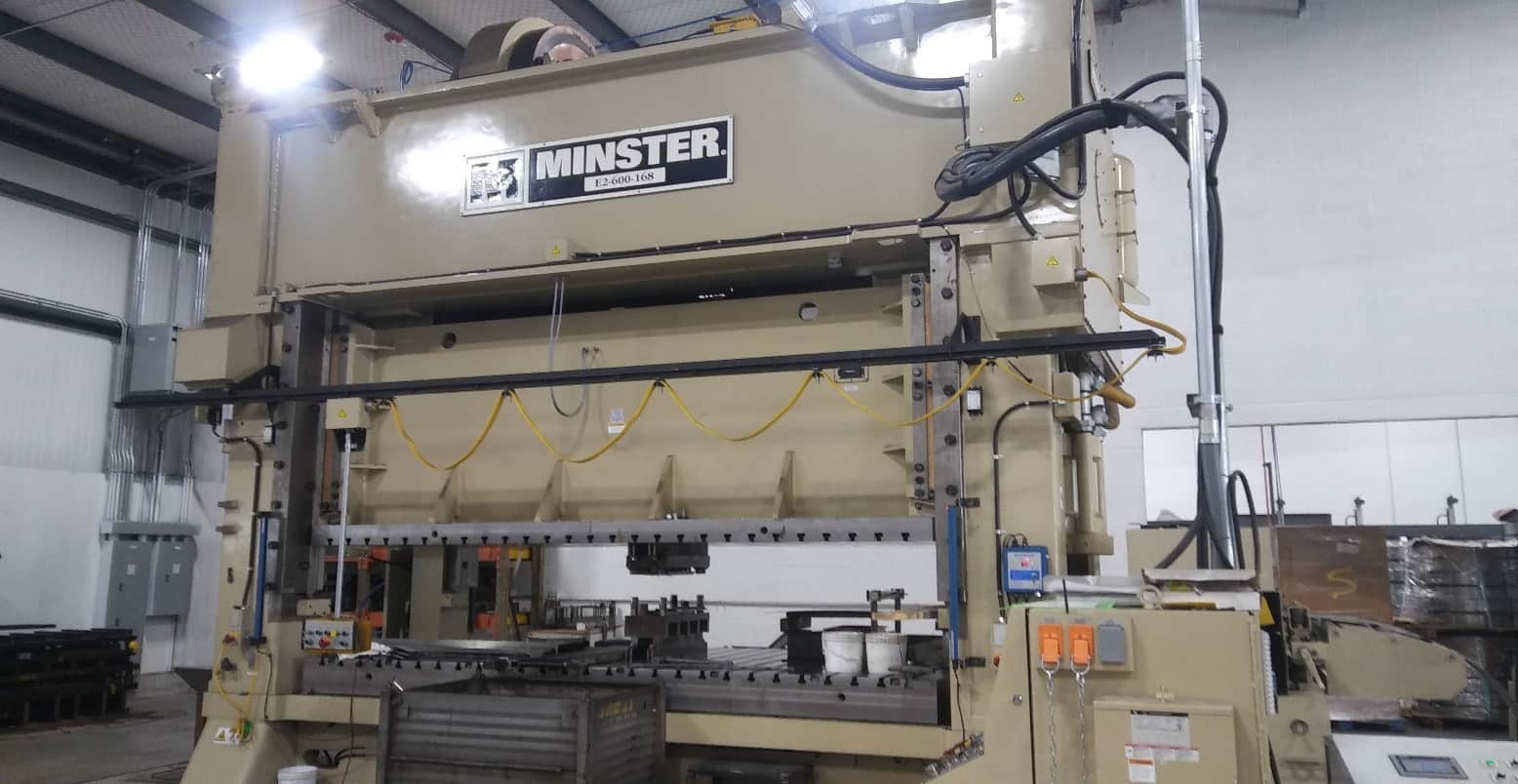

Minster e2-168

  • 600 U.S. Tons Capacity @.250 in.(5338 KN @ 6.4 mm)
  • 10.00 in. Stroke (254 mm)
  • 6.00 in.Slide Adjustment (152 mm)
  • 34.00 in. Shut height, SDAU, on Bed (864 mm)
  • 168.00 x 72.00 in. Slide Area (4267 mm x 1829 mm)
  • 168.00 x 72.00 in. Bed Area (4267 mm x 1829 mm)
  • 90.00 x 30.00 in. Bed Opening (2286 mm x 762 mm)
  • 53.00 in. Upright Opening (1346 mm)
  • 51.00 in. Foot to Top of Bed (1296 mm)
  • 0 – 50 SPM100 HP/1500-1800 RPM Drive Moto



MINSTER P2-100-54

  •  150 U.S. Tons Capacity (1350 kN)
  • 2.00 in. Stroke (50mm)
  • 4.00 in. Slide Adjustment (100 mm)
  • 18.50 in. Shutheight, SDAU, on Bed (470 mm)
  • 54.00 x 23.00 in. Slide Area (1370 x 585 mm)
  •  54.00 x 40.00 in. Bed Area (1370 x 1015 mm)
  • 44.00 x 18.00 in. Bed Opening (1118 x 458 mm)
  •  56.00 in. Between Gibs (1422 mm)
  • 20.00 in. Upright Opening (510 mm)
  •  0 – 150 SPM · 25 HP, 1200 RPM Drive Motor (18kw) servo smart pack

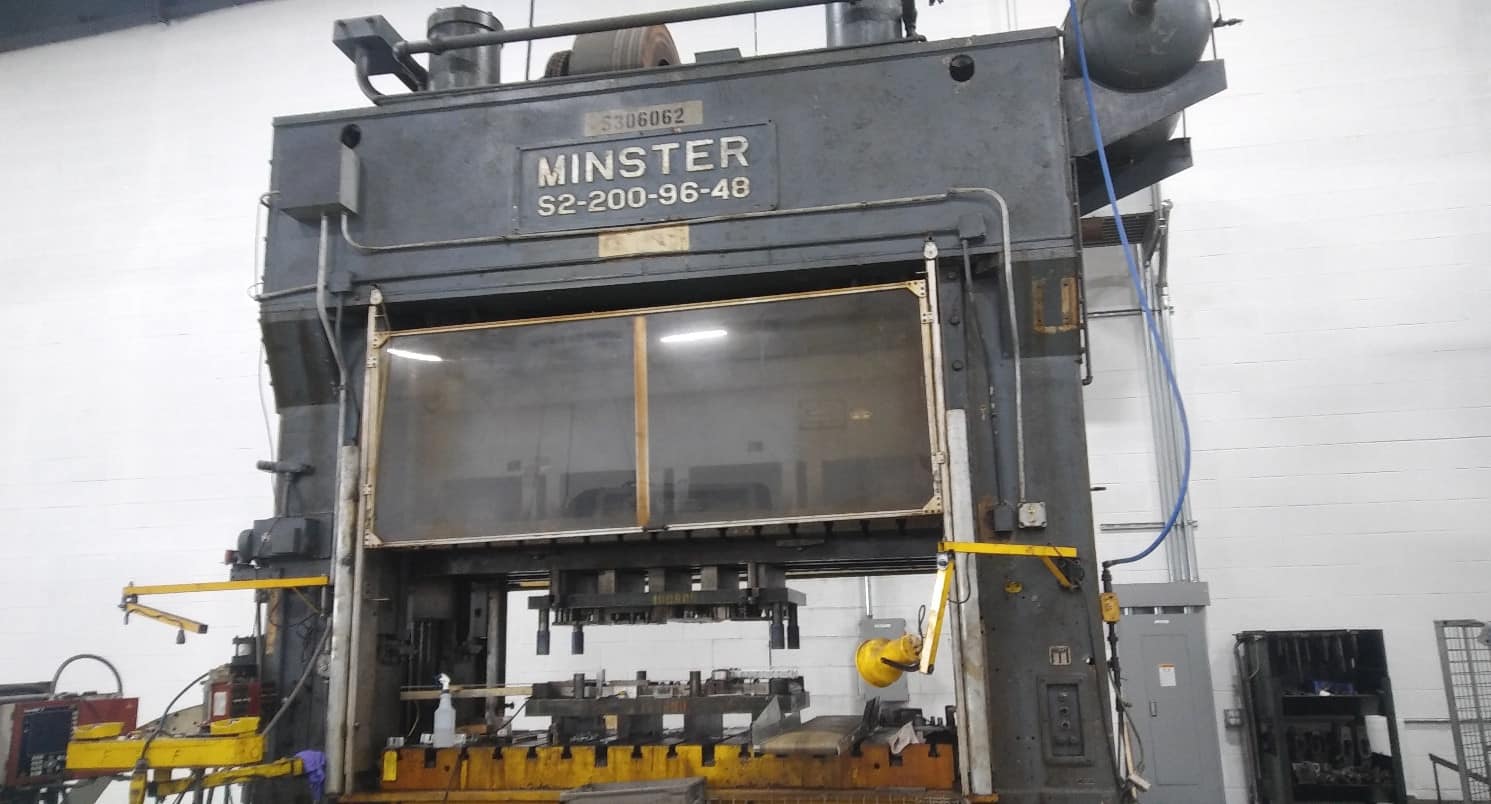

MINSTER S2-200-96-48

Capacity: 300 ton
Bed area: 96×48
Stroke: 10″
Shunt height over bed : 36 inches Strokes per min 0-60

EQUIPPED WITH:

  • Minster Hydraulic Clutch Brake
  • Hydraulic Overload Protection
  • Twin Drive DoubleBack Geared
  • Floor Standing
  • T- Slotted Bolster & Ram
  • Wintriss Smart Pak 2 Control

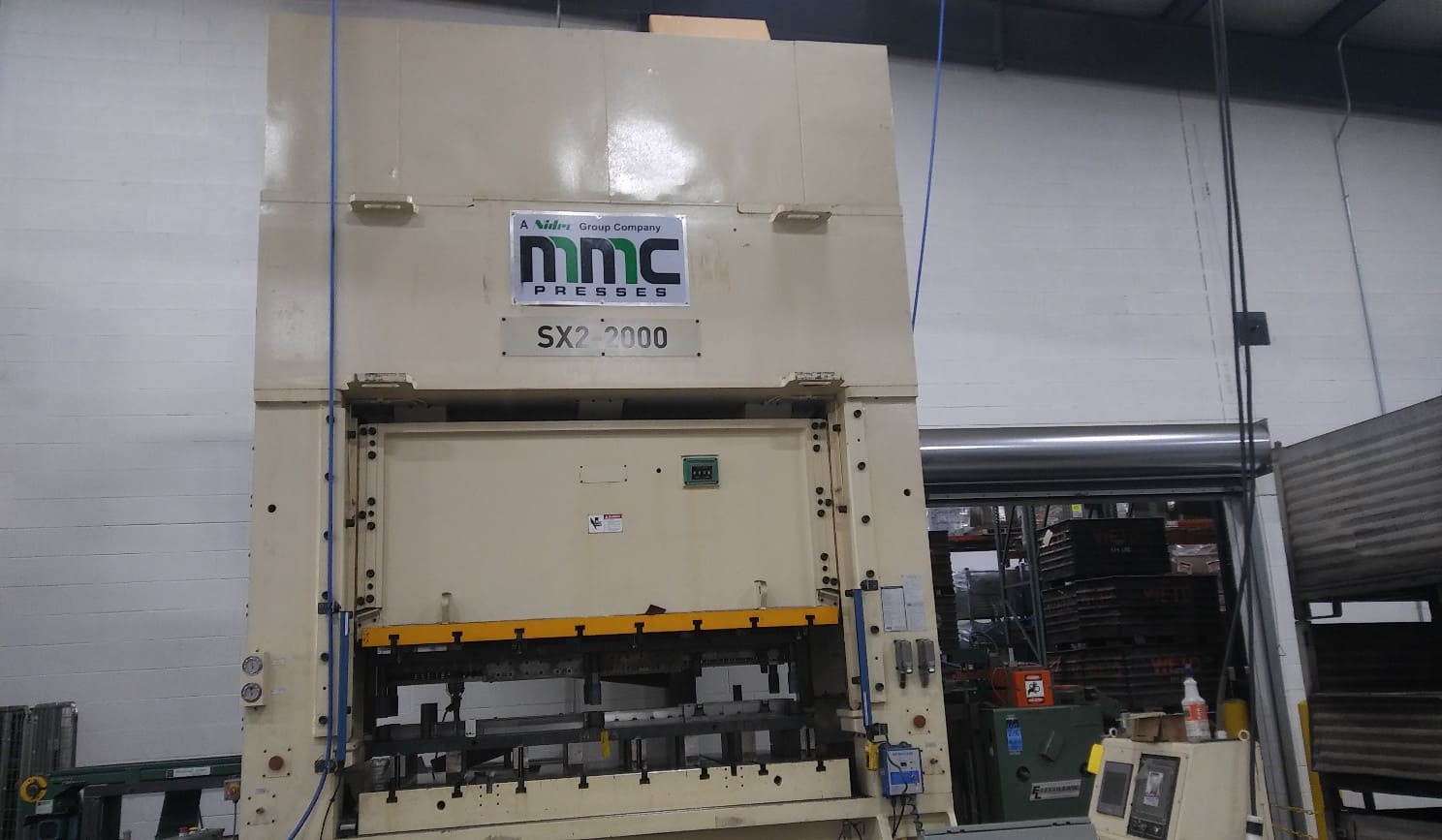

MINSTER MMC-2000

  • 200 U.S. Tons Capacity (1779 kN)
  • 0.197 in. Torque Capacity from BDC (5 mm)
  • 8.00 in. Stroke (203 mm)
  • 5.90 in. Shut Height Adjustment (150 mm)
  • 18.90 in. Shut Height, SDAU, over Bolster (480 mm)
  • 94.40 x 47.20 in. Slide Area (2400 mm x 1200 mm)
  • 94.40 x 47.20 in. Bolster Area (2400 mm x 1200 mm)
  • 27.50 in. Side Window Opening (700 mm)
  • 30 – 60 SPM Speed Range @ Full Tonnage



MINSTER MMC-2000

  • Capacity 220 ton
  • Max Stroke Length 250mm ( with pendulum you can use what you want )
  • Slide adjustment 110 mm
  • bolster area 2200 x 870
  • Slide area 1900 x 670
  • Shut height SDAU 450mm
  • Sroke per minute with max stroke length 60 ( with pendulum and less stroke you can reach 120 spm )
  • Servo  Smart Pack

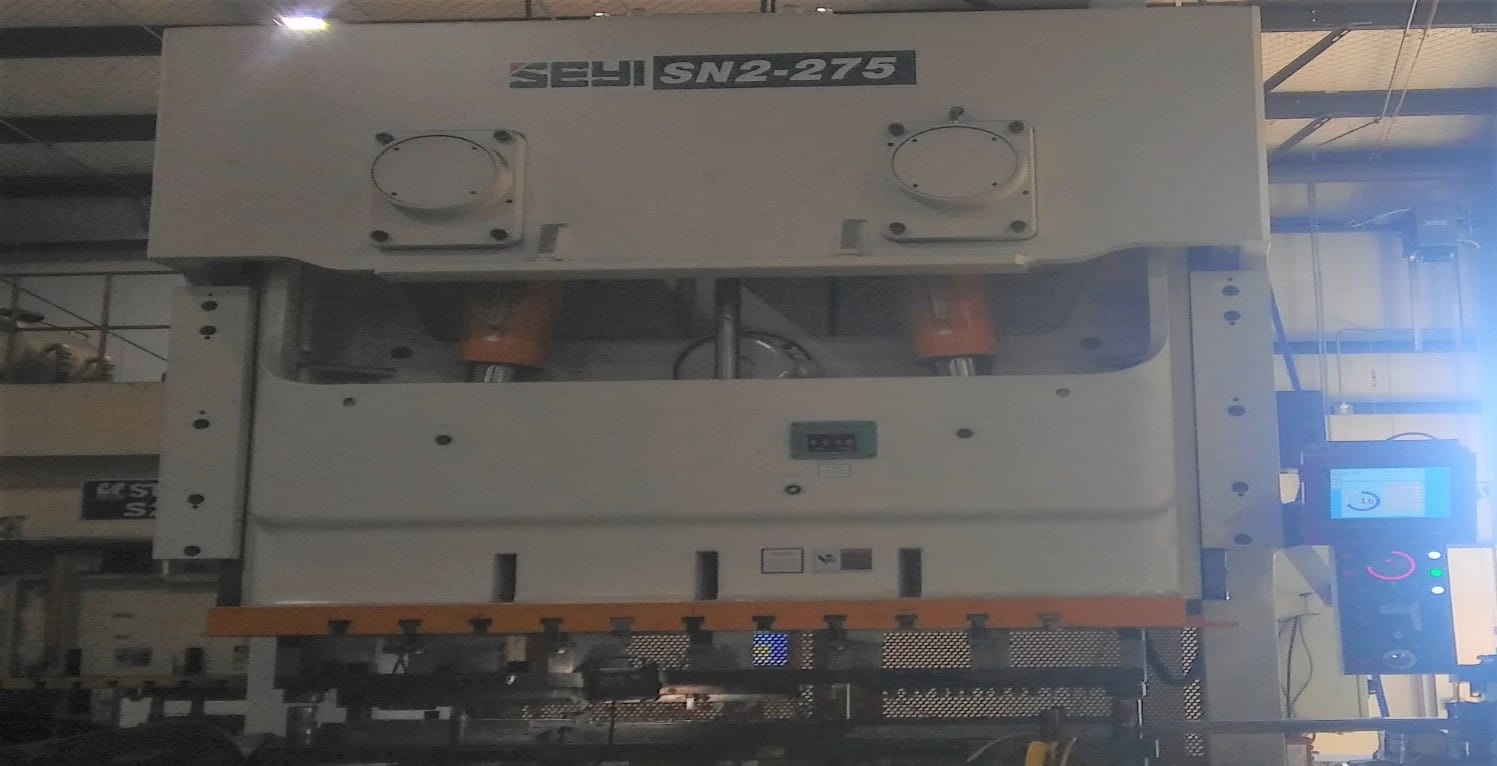

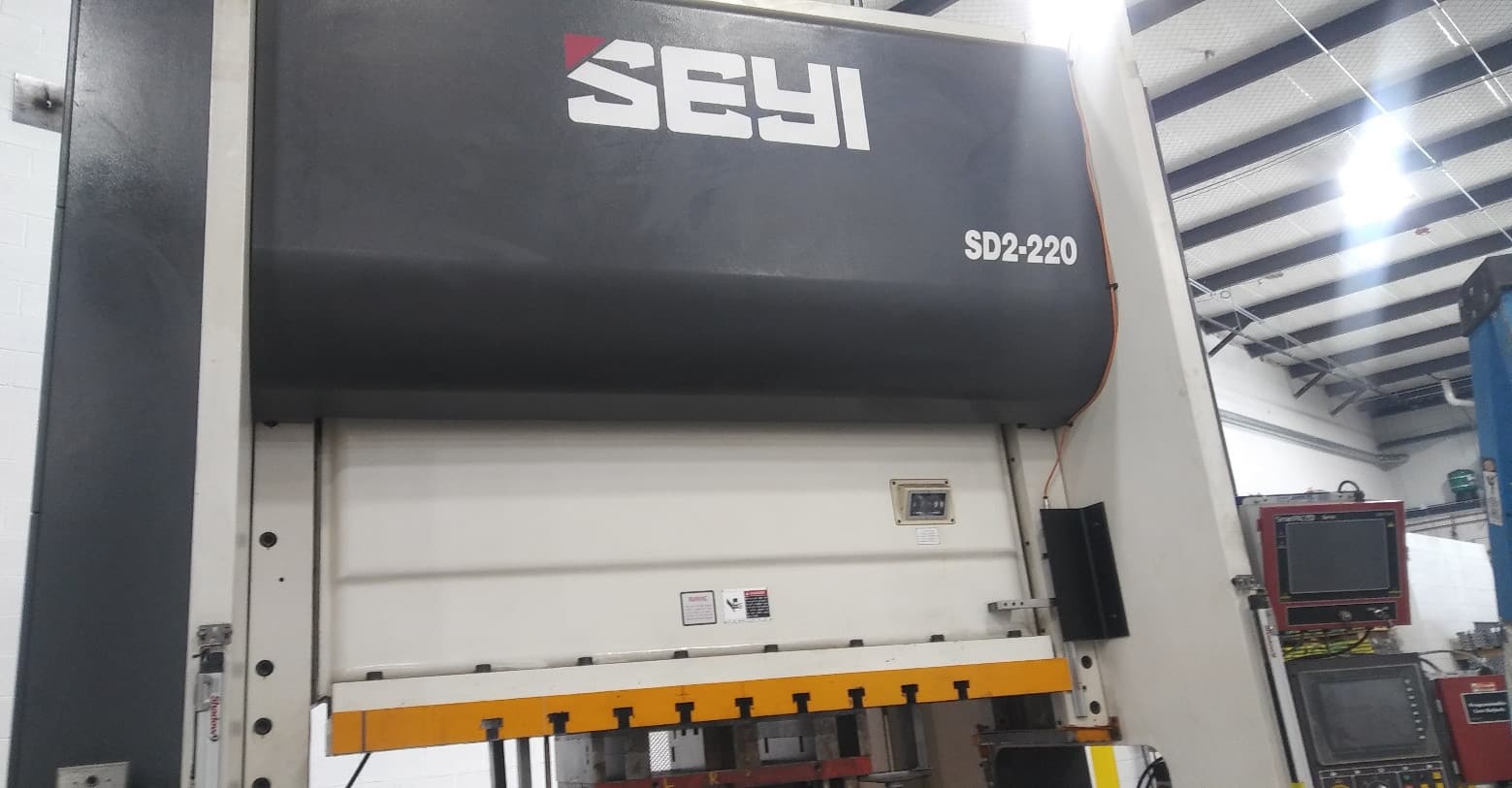

SEYI SN2-275

  • Capacity 275 US TONS
  • Stroke 7.08″
  • Max Shut Height 23.82″ SDAU OVER BOLSTER
  • Bed Area 106.3″ RL X 35.4″ FB
  • Speed 30 – 60 SPM
  • Ram Adjustment 4.72″ Motorized
  • Ram Area 82.7″ RL X 27.6″ FB (T-SLOT)
  • Bolster Plate 7.3″ H X 106.3″ RL X 35.4″ FB (T-SLOT)
  • Dist Upright / Floor to Bed 83.5″ / 28.0″
  • Clutch Seyi Air Clutch / Brake Combination
  • Electrics 30 HP 1800 RPM 240/480V-3-60 Motor & Cieco PLS Plus Control
  • Approx Dimensions 170″ H X 118″ RL X 100″ FB
